UDMH¶
UDMH or Unsymmetrical Dimethylhydrazine ((CH3)2NNH2) became the storable liquid fuel of choice by the mid-1950’s. Development of UDMH in the Soviet Union began in 1949. It is used in virtually all storable liquid rocket engines except for some orbital maneuvering engines in the United States, where MMH has been preferred due to a slightly higher density and performance.
Reference Points¶
UDMH == UnsymmetricDiMethylHydrazine
Hover over column headers to see definitions, values to see alternate units
| Tref | Pref | SG | Cp | dHvap | Visc | Cond | Surf | |
|---|---|---|---|---|---|---|---|---|
| Source | R | psia | g/ml | BTU/lbm-R | BTU/lbm | poise | BTU/hr-ft-R | lbf/in |
| RocketProps | 527.7 | 14.7 | 0.7904 | 0.665 | 250.5 | 5.533e-03 | 0.0919 | 1.407e-04 |
| AFRPL-TR-69-149 | 536.4 | 14.7 | 0.7861 | 0.704 | 233.5 | 4.920e-03 | 0.0909 | 1.375e-04 |
| Aerojet | 527.7 | 14.7 | 0.7904 | 0.665 | 250.6 | 5.534e-03 | 0.0919 | --- |
| Vandenberg | 527.7 | 14.7 | 0.7913 | --- | 245.9 | --- | 0.0947 | --- |
Fluid Properties¶
UDMH == UnsymmetricDiMethylHydrazine
Hover over column headers to see definitions, values to see alternate units
| MolWt | Tc | Pc | SGc | Zc | Tnbp | Tmelt | omega | |
|---|---|---|---|---|---|---|---|---|
| Source | g/gmole | R | psia | g/ml | (-) | R | R | (-) |
| RocketProps | 60.099 | 941.7 | 867.0 | 0.2767 | 0.2985 | 603.9 | 388.7 | 0.34992 |
| AFRPL-TR-69-149 | 60.102 | 941.0 | 867.0 | 0.2750 | 0.3006 | 603.8 | 388.7 | --- |
| Aerojet | 60.099 | 941.7 | 867.0 | 0.2767 | 0.2985 | 603.9 | 388.7 | 0.36186 |
| Vandenberg | 60.099 | 941.4 | 787.7 | 0.2610 | 0.2877 | 606.7 | 387.3 | 0.34300 |

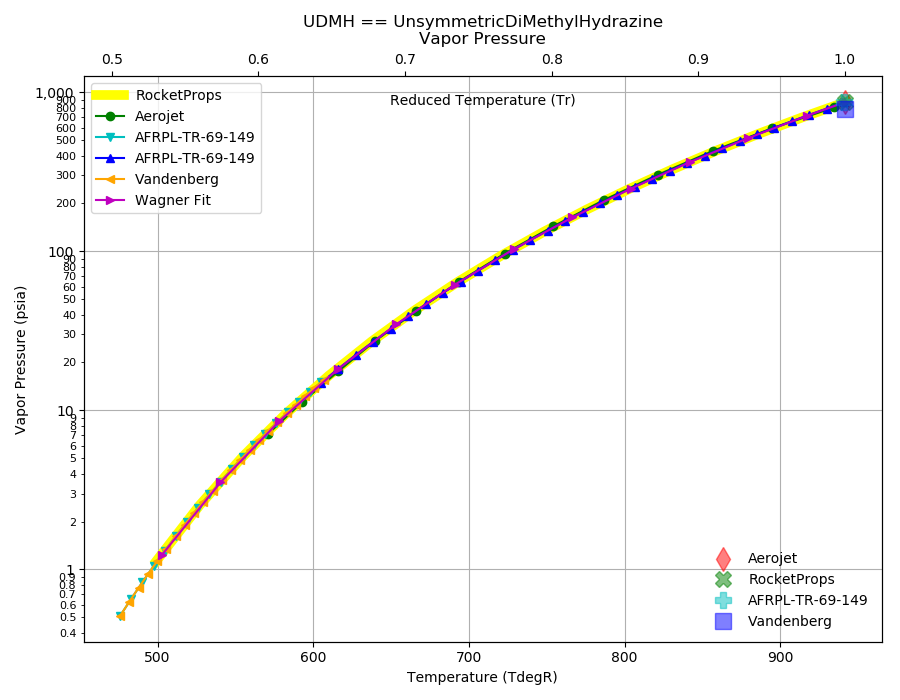

Vapor Pressure¶
Click Image to View Fill Size

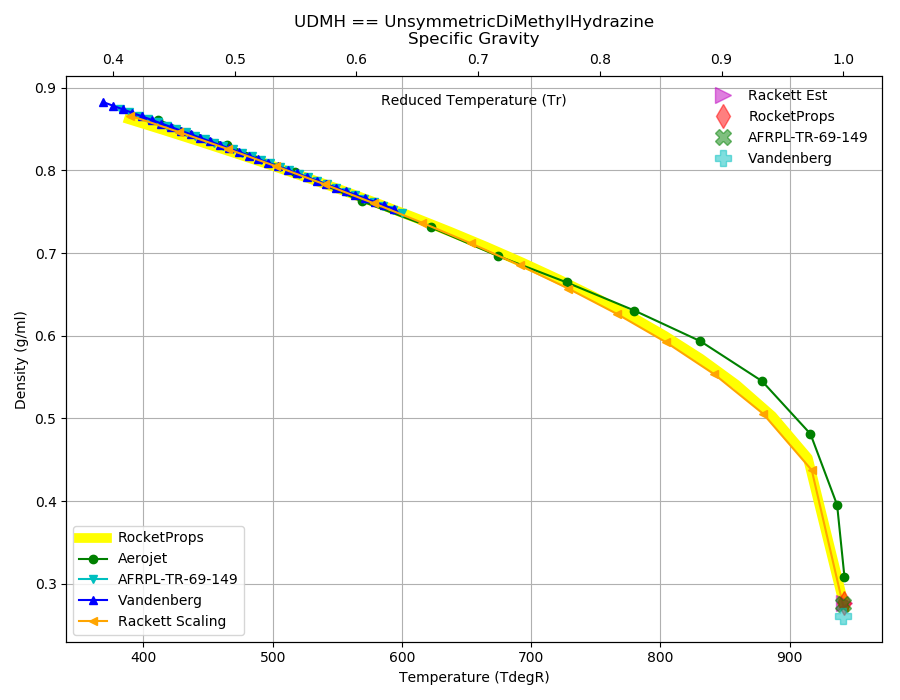

Density¶
Click Image to View Fill Size

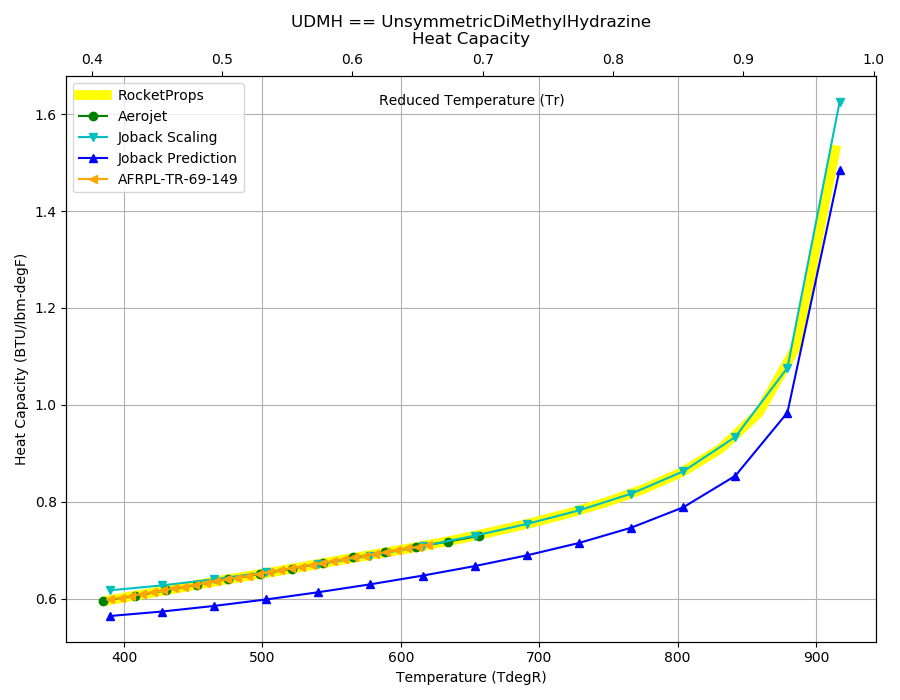

Heat Capacity¶
Click Image to View Fill Size

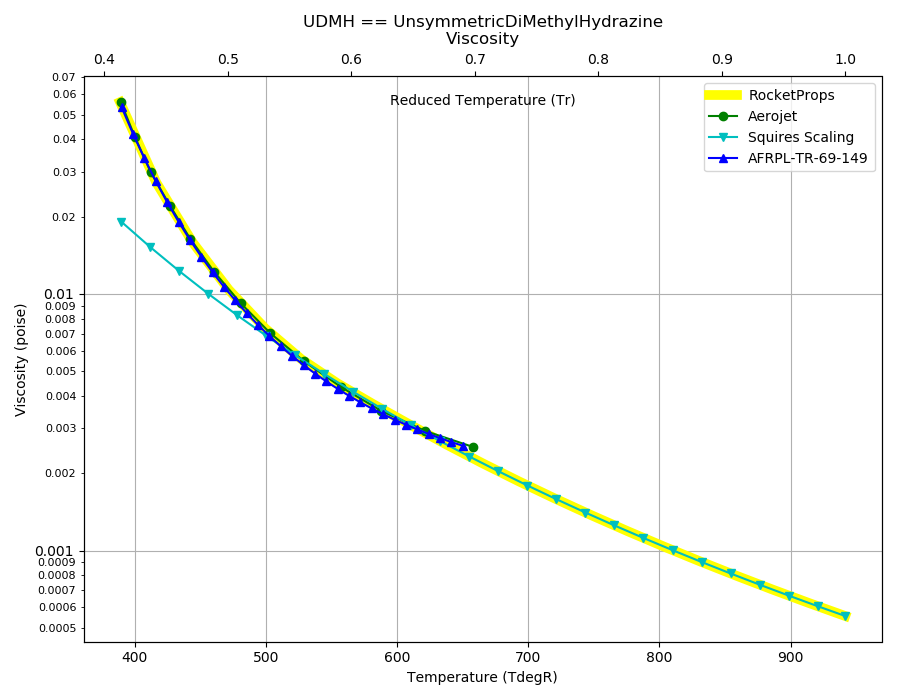

Viscosity¶
Click Image to View Fill Size

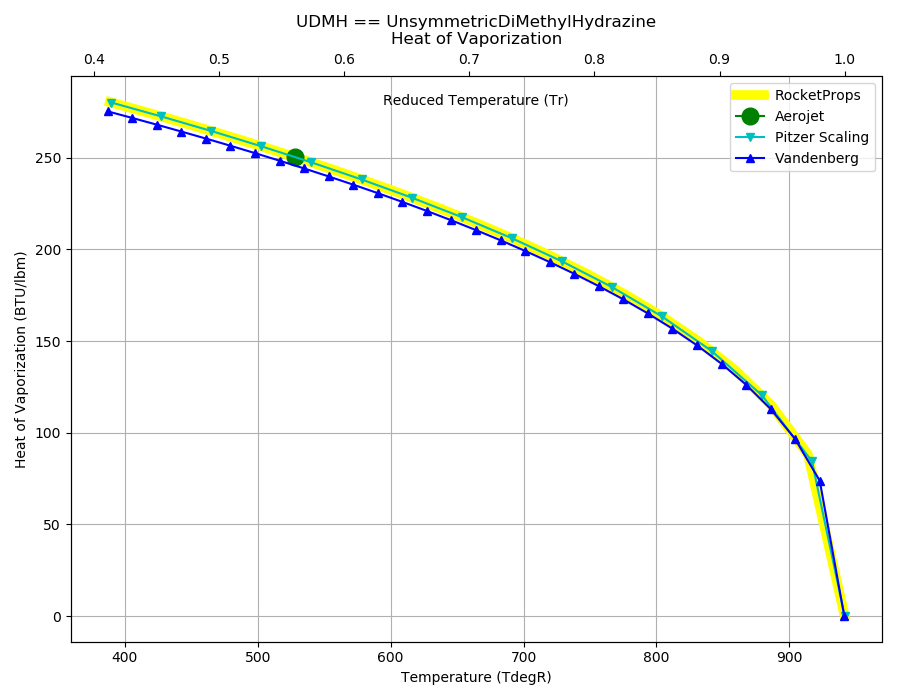

Heat of Vaporization¶
Click Image to View Fill Size

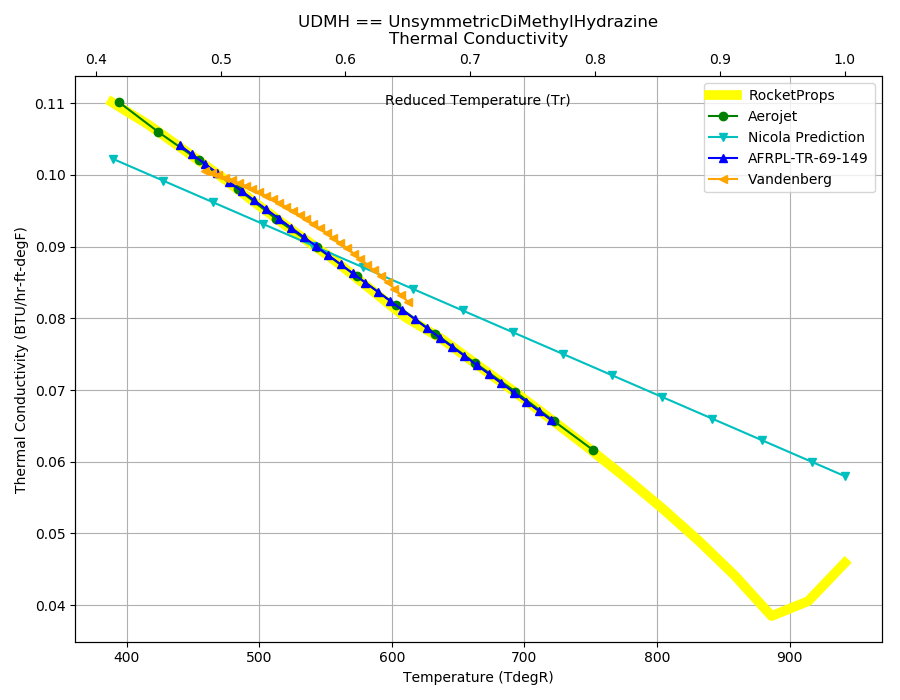

Thermal Conductivity¶
Click Image to View Fill Size

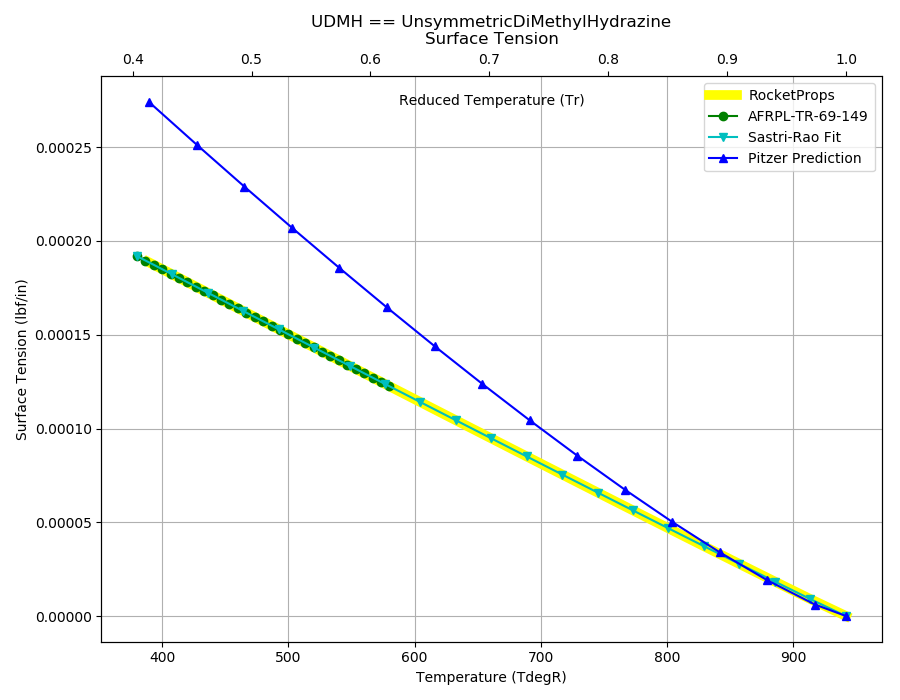

Surface Tension¶
Click Image to View Fill Size
