N2O¶
N2O or Liquid nitrous oxide (N2O / dinitrogen monoxide / ‘laughing gas’) is the oxidizer of choice for hybrid rocket motors because it is benign, storable, and self-pressurizing.
Reference Points¶
N2O == Dinitrogen Oxide == NitrousOxide
Hover over column headers to see definitions, values to see alternate units
| Tref | Pref | SG | Cp | dHvap | Visc | Cond | Surf | |
|---|---|---|---|---|---|---|---|---|
| Source | R | psia | g/ml | BTU/lbm-R | BTU/lbm | poise | BTU/hr-ft-R | lbf/in |
| RocketProps | 332.4 | 14.7 | 1.2305 | 0.411 | 161.0 | 3.237e-03 | 0.1161 | 1.355e-04 |
| RefProp | 332.4 | 14.7 | 1.2305 | 0.411 | 161.0 | 3.237e-03 | 0.1161 | 1.355e-04 |
Fluid Properties¶
N2O == Dinitrogen Oxide == NitrousOxide
Hover over column headers to see definitions, values to see alternate units
| MolWt | Tc | Pc | SGc | Zc | Tnbp | Tmelt | omega | |
|---|---|---|---|---|---|---|---|---|
| Source | g/gmole | R | psia | g/ml | (-) | R | R | (-) |
| RocketProps | 44.013 | 557.1 | 1050.8 | 0.4520 | 0.2742 | 332.4 | 328.2 | 0.16219 |
| RefProp | 44.013 | 557.1 | 1050.8 | 0.4520 | 0.2742 | 332.4 | 328.2 | 0.16219 |
| Gas&Liq 5th Ed | 44.013 | 557.3 | 1052.2 | 0.4537 | 0.2734 | 332.4 | 328.2 | --- |

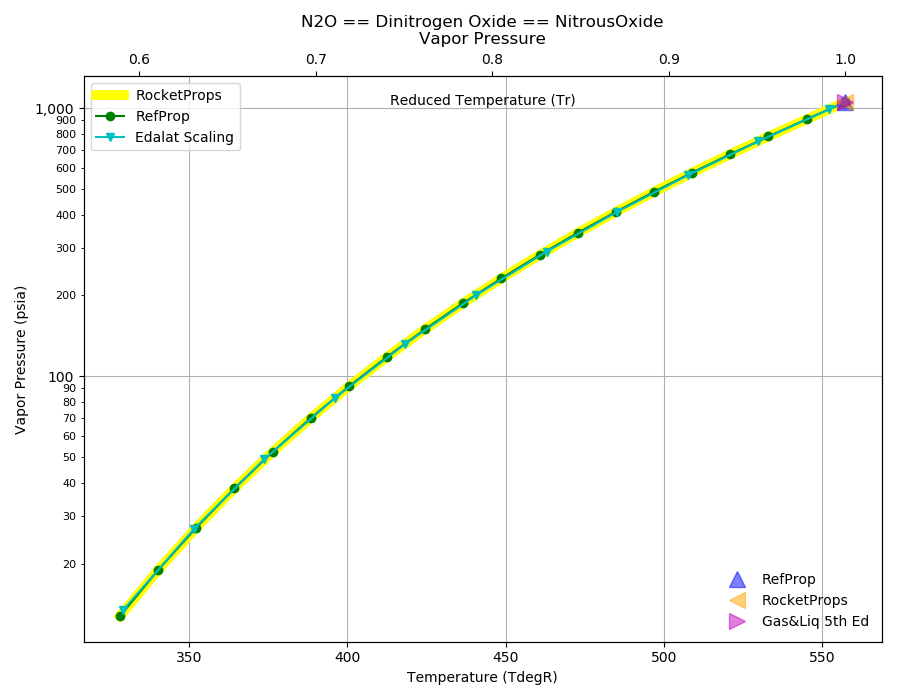

Vapor Pressure¶
Click Image to View Fill Size

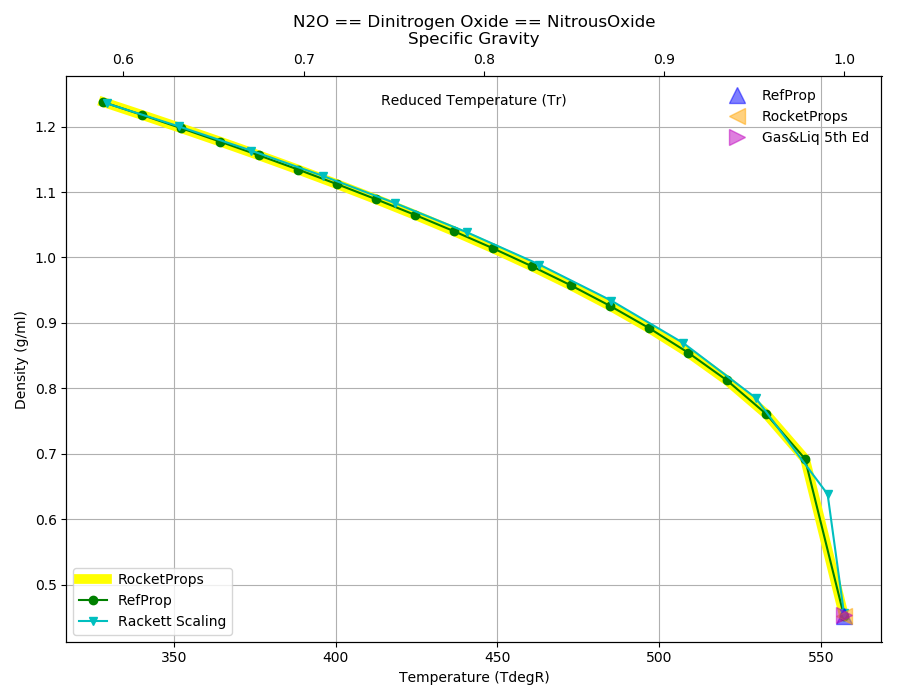

Density¶
Click Image to View Fill Size

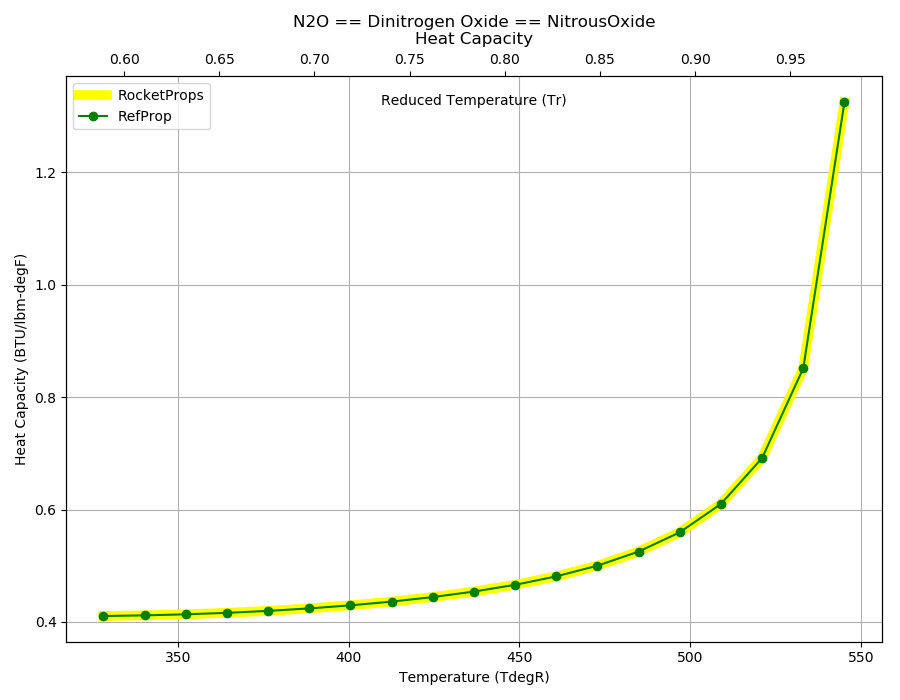

Heat Capacity¶
Click Image to View Fill Size

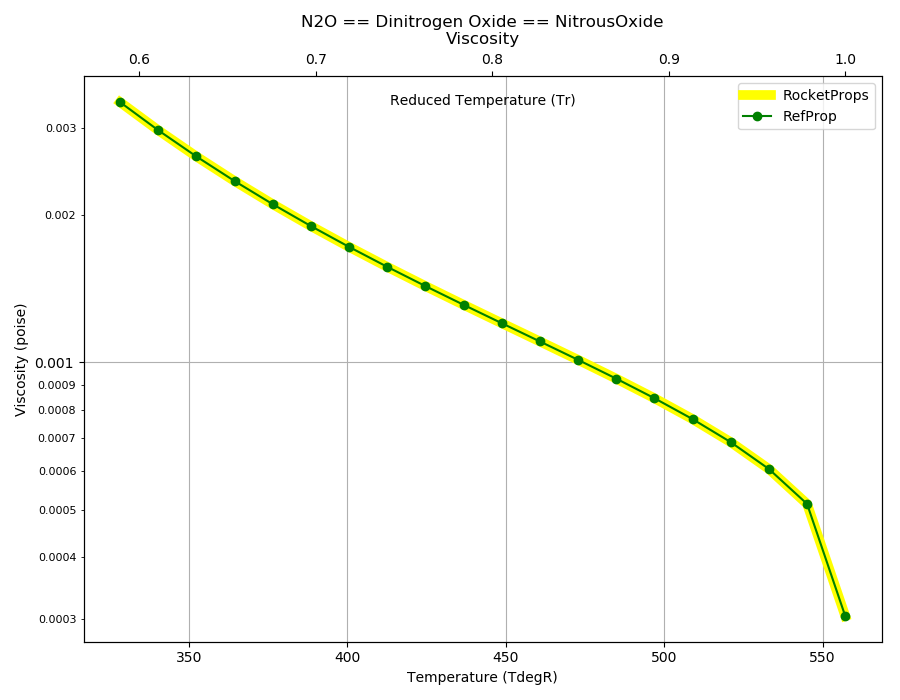

Viscosity¶
Click Image to View Fill Size

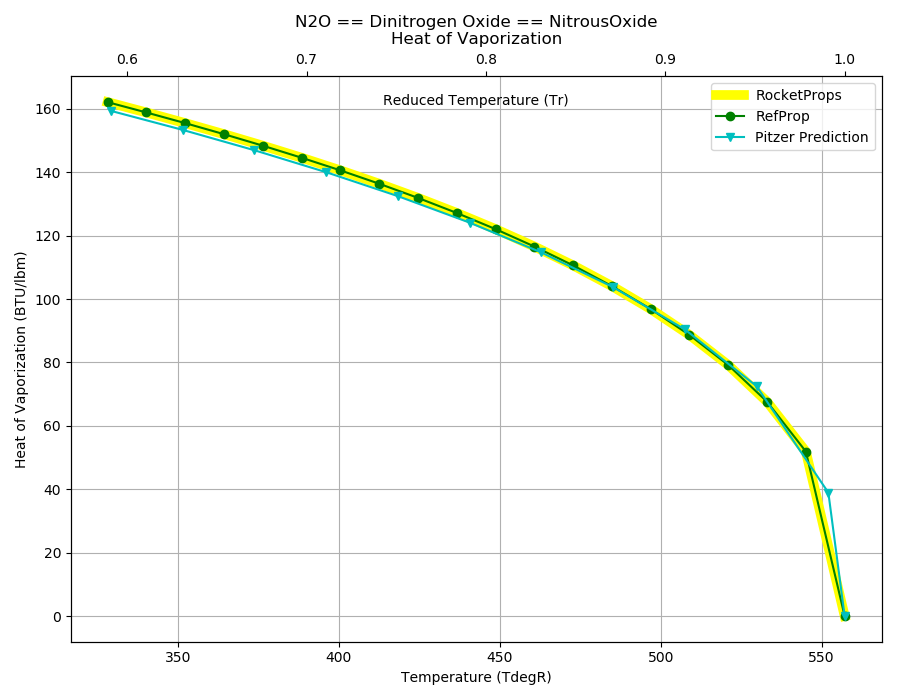

Heat of Vaporization¶
Click Image to View Fill Size

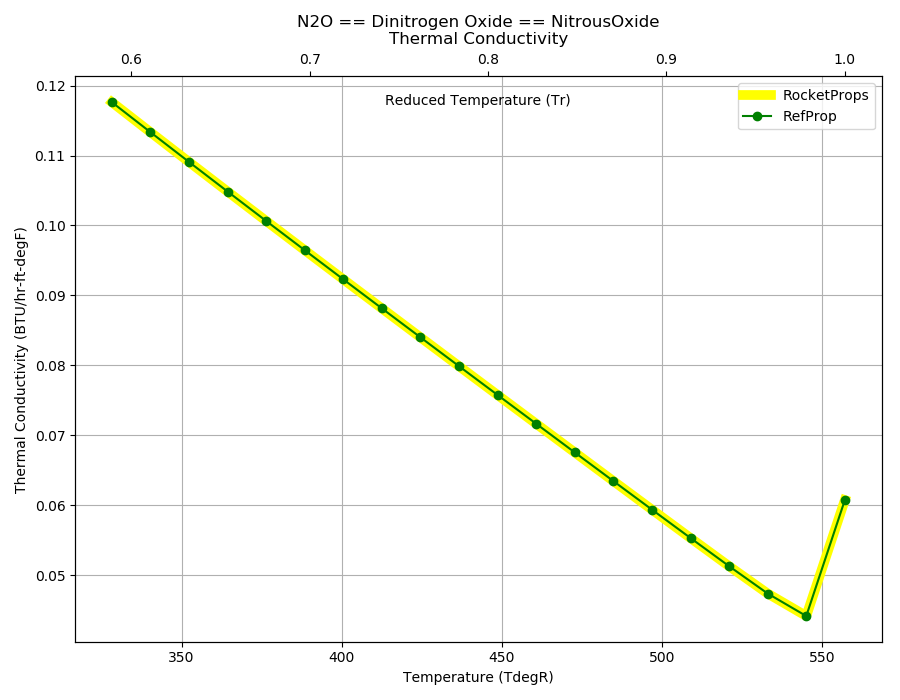

Thermal Conductivity¶
Click Image to View Fill Size

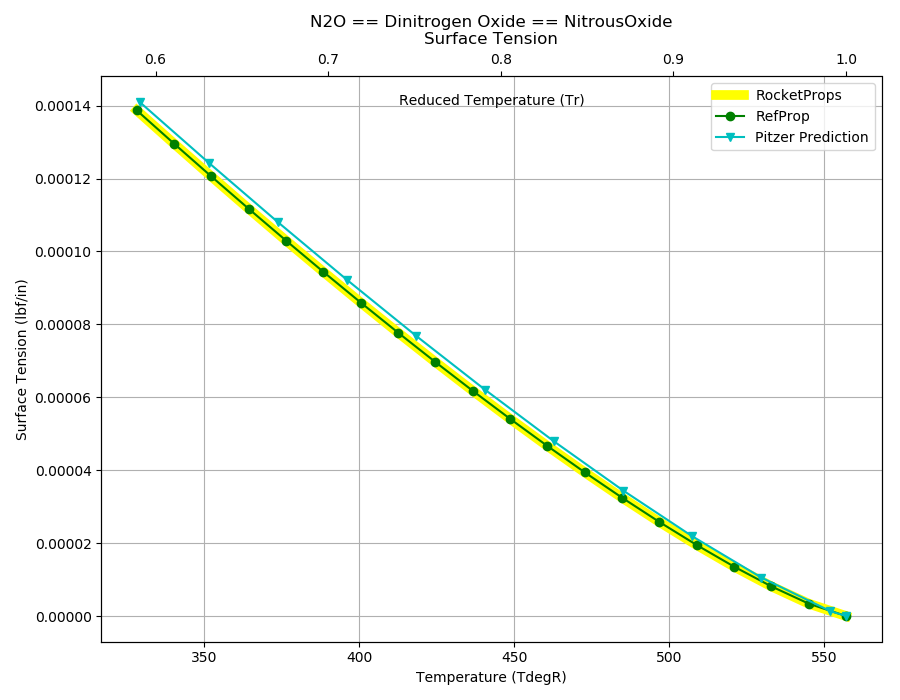

Surface Tension¶
Click Image to View Fill Size
