A50¶
Aerozine-50 is a 50-50 mixture of hydrazine and UDMH developed by Aerojet. It was used in the Delta second stage , the Apollo lunar lander and in many other vehicles
Reference Points¶
A50 == 50% N2H4 + 50% UDMH == Aerozine50
Hover over column headers to see definitions, values to see alternate units
| Tref | Pref | SG | Cp | dHvap | Visc | Cond | Surf | |
|---|---|---|---|---|---|---|---|---|
| Source | R | psia | g/ml | BTU/lbm-R | BTU/lbm | poise | BTU/hr-ft-R | lbf/in |
| RocketProps | 527.7 | 14.7 | 0.9035 | 0.728 | 346.5 | 9.209e-03 | 0.1661 | 1.699e-04 |
| AFRPL-TR-69-149 | 536.4 | 14.7 | 0.8987 | 0.732 | 346.3 | 8.090e-03 | 0.1651 | 1.662e-04 |
| Aerojet | 527.7 | 14.7 | 0.9035 | 0.728 | 346.5 | 9.209e-03 | 0.1659 | --- |
| Vandenberg | 527.7 | 14.7 | 0.9033 | --- | 368.4 | --- | 0.1659 | --- |
Fluid Properties¶
A50 == 50% N2H4 + 50% UDMH == Aerozine50
Hover over column headers to see definitions, values to see alternate units
| MolWt | Tc | Pc | SGc | Zc | Tnbp | Tmelt | omega | |
|---|---|---|---|---|---|---|---|---|
| Source | g/gmole | R | psia | g/ml | (-) | R | R | (-) |
| RocketProps | 41.802 | 1092.7 | 1731.0 | 0.3087 | 0.3203 | 617.7 | 481.7 | 0.16665 |
| AFRPL-TR-69-149 | 41.805 | 1093.0 | 1731.0 | --- | --- | 618.0 | 481.7 | --- |
| Aerojet | 41.802 | 1092.7 | 1731.0 | 0.3087 | 0.3203 | 617.7 | 481.7 | 0.19047 |
| Vandenberg | 41.802 | 1067.4 | 1359.4 | 0.3100 | 0.2564 | 630.0 | 478.8 | 0.39600 |
The Aerojet and AFRPL-TR-69-149 data are virtually identical, perhaps indicating a common source.

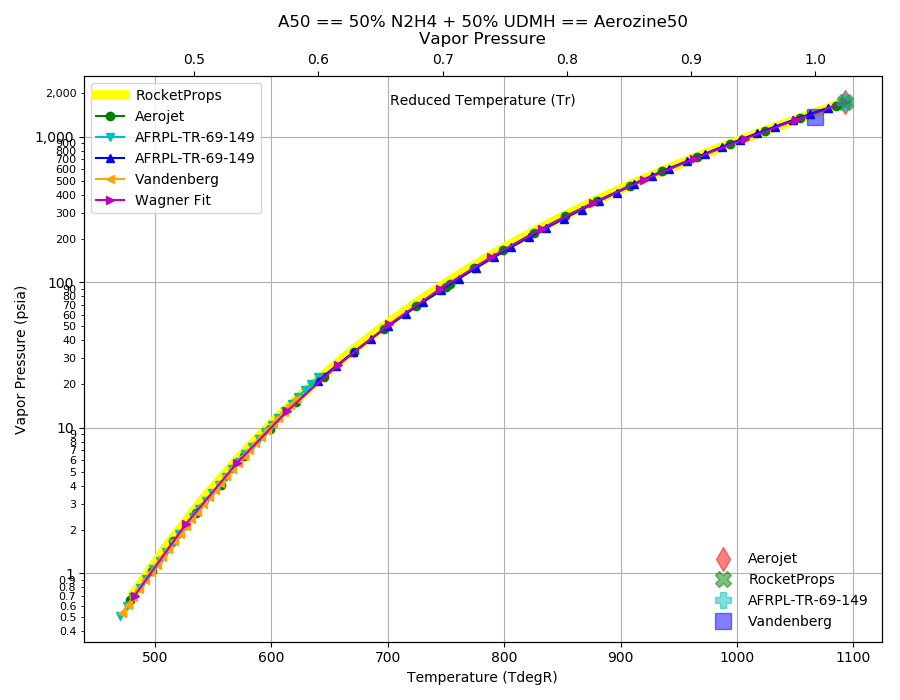

Vapor Pressure¶
Click Image to View Fill Size

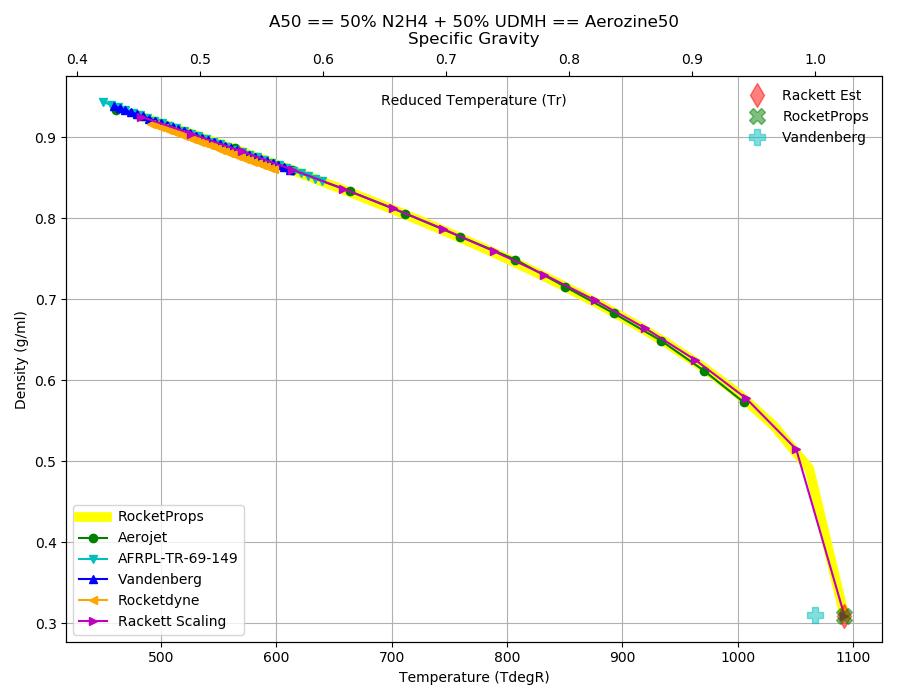

Density¶
Click Image to View Fill Size

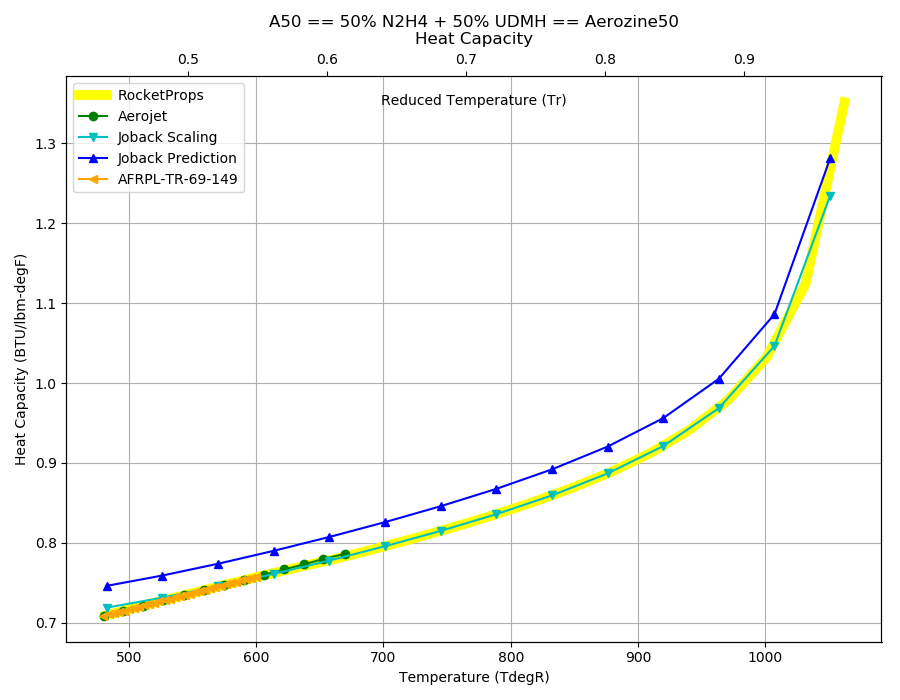

Heat Capacity¶
Click Image to View Fill Size

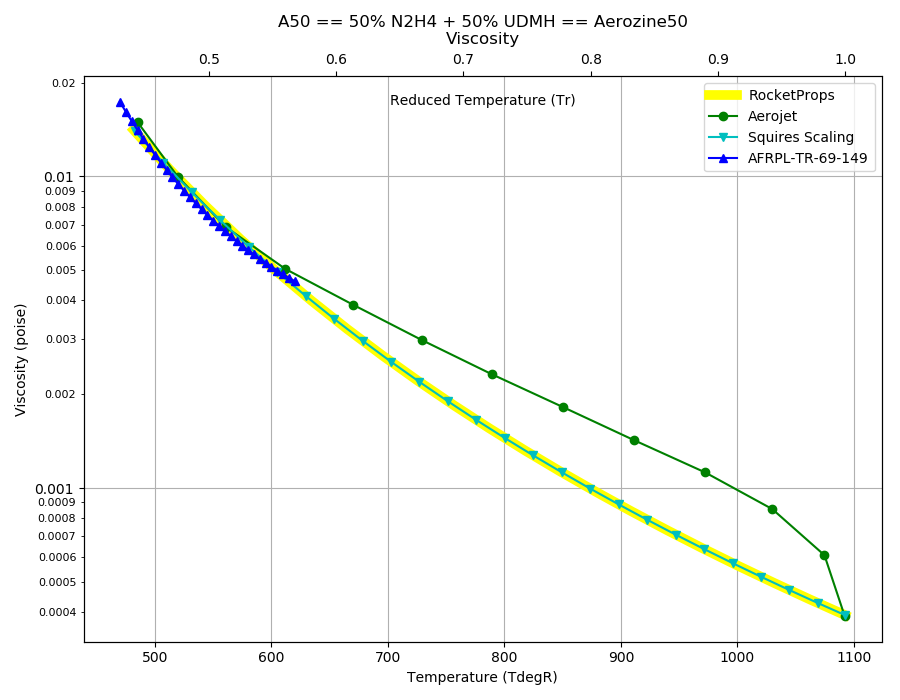

Viscosity¶
Click Image to View Fill Size

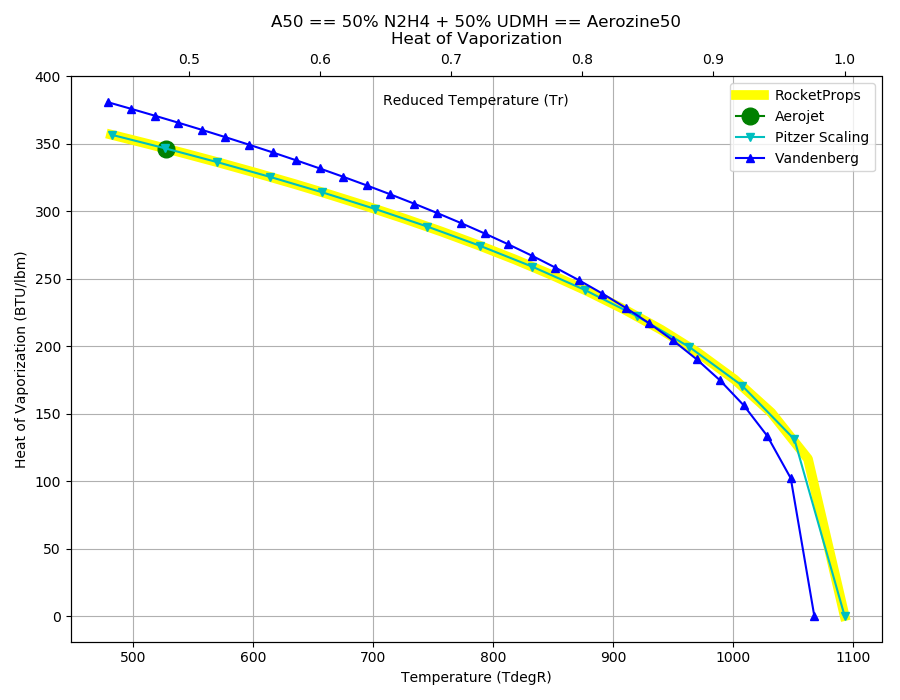

Heat of Vaporization¶
Click Image to View Fill Size

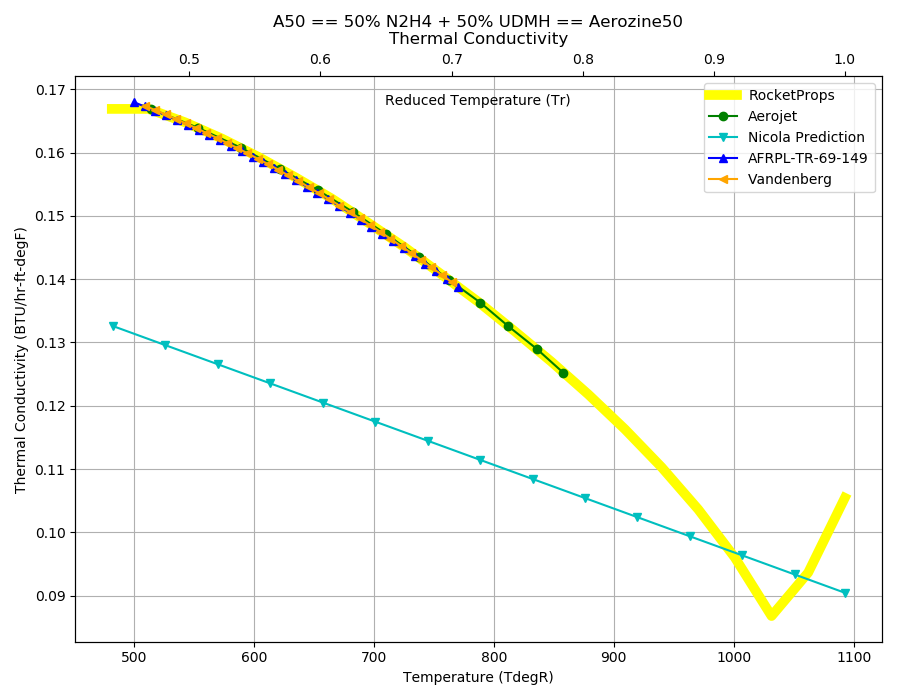

Thermal Conductivity¶
Click Image to View Fill Size

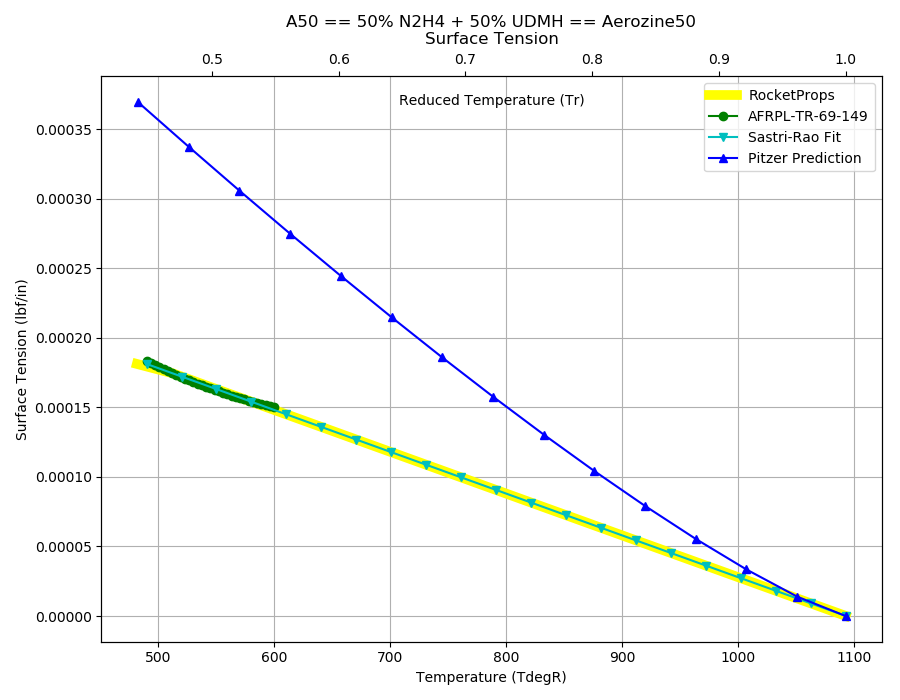

Surface Tension¶
Click Image to View Fill Size
