Propane¶
Reference Points¶
Propane == C3H8
Hover over column headers to see definitions, values to see alternate units
| Tref | Pref | SG | Cp | dHvap | Visc | Cond | Surf | |
|---|---|---|---|---|---|---|---|---|
| Source | R | psia | g/ml | BTU/lbm-R | BTU/lbm | poise | BTU/hr-ft-R | lbf/in |
| RocketProps | 415.9 | 14.7 | 0.5809 | 0.537 | 183.1 | 1.972e-03 | 0.0747 | 9.040e-05 |
| RefProp | 415.9 | 14.7 | 0.5809 | 0.537 | 183.1 | 1.972e-03 | 0.0747 | 9.040e-05 |
Fluid Properties¶
Propane == C3H8
Hover over column headers to see definitions, values to see alternate units
| MolWt | Tc | Pc | SGc | Zc | Tnbp | Tmelt | omega | |
|---|---|---|---|---|---|---|---|---|
| Source | g/gmole | R | psia | g/ml | (-) | R | R | (-) |
| RocketProps | 44.096 | 665.8 | 616.6 | 0.2205 | 0.2765 | 415.9 | 154.0 | 0.15215 |
| RefProp | 44.096 | 665.8 | 616.6 | 0.2205 | 0.2765 | 415.9 | 154.0 | 0.15215 |
| Gas&Liq 5th Ed | 44.097 | 665.7 | 616.1 | 0.2205 | 0.2764 | 415.8 | 164.6 | 0.15200 |

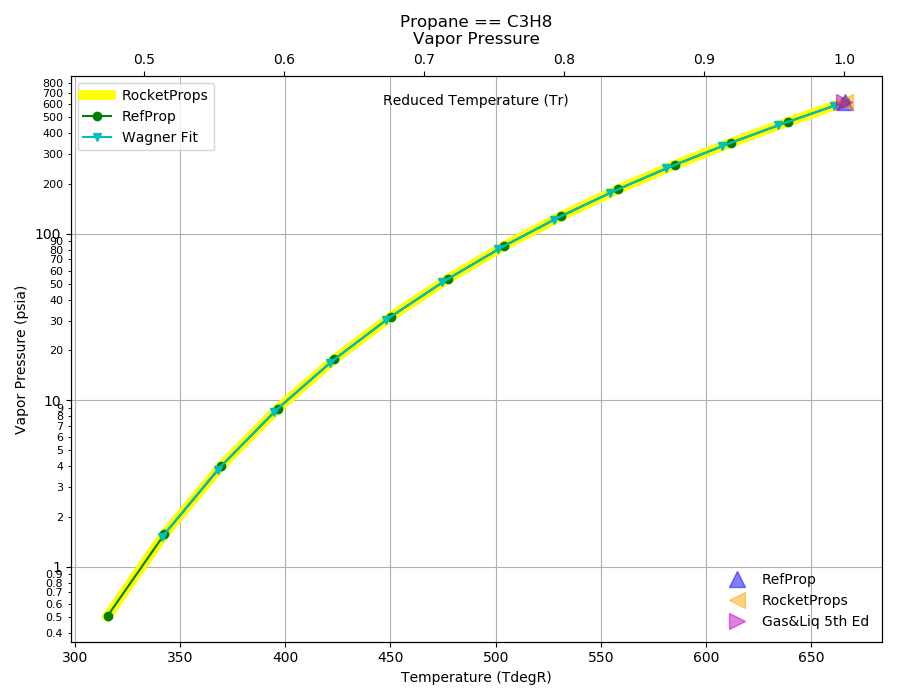

Vapor Pressure¶
Click Image to View Fill Size

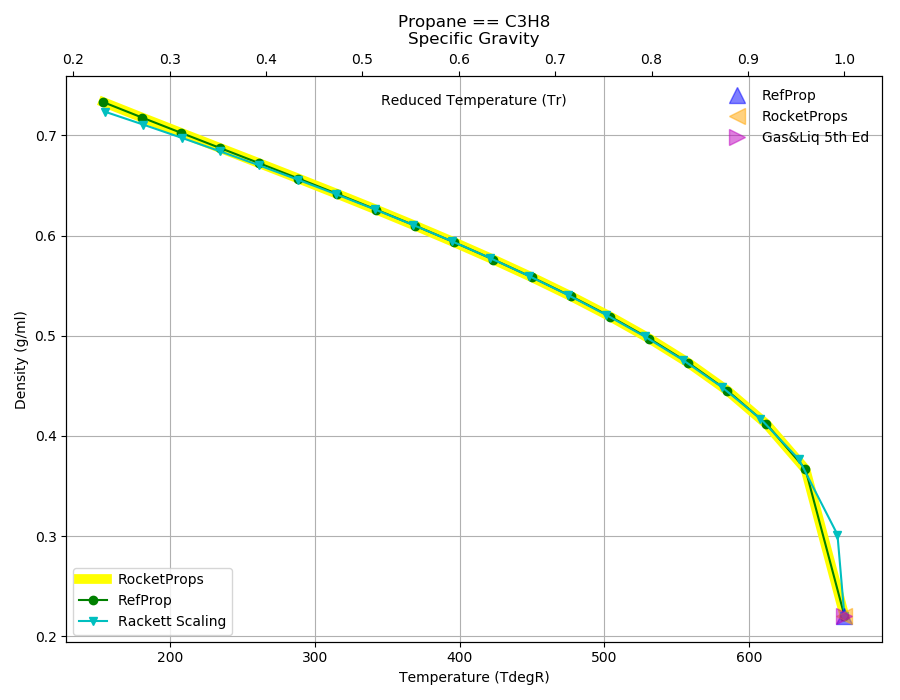

Density¶
Click Image to View Fill Size

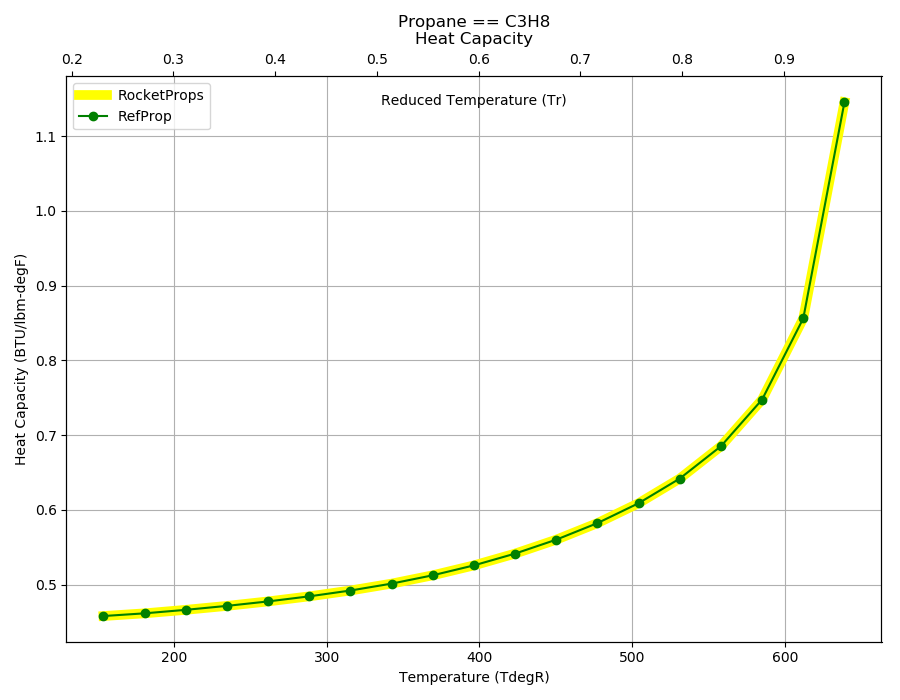

Heat Capacity¶
Click Image to View Fill Size

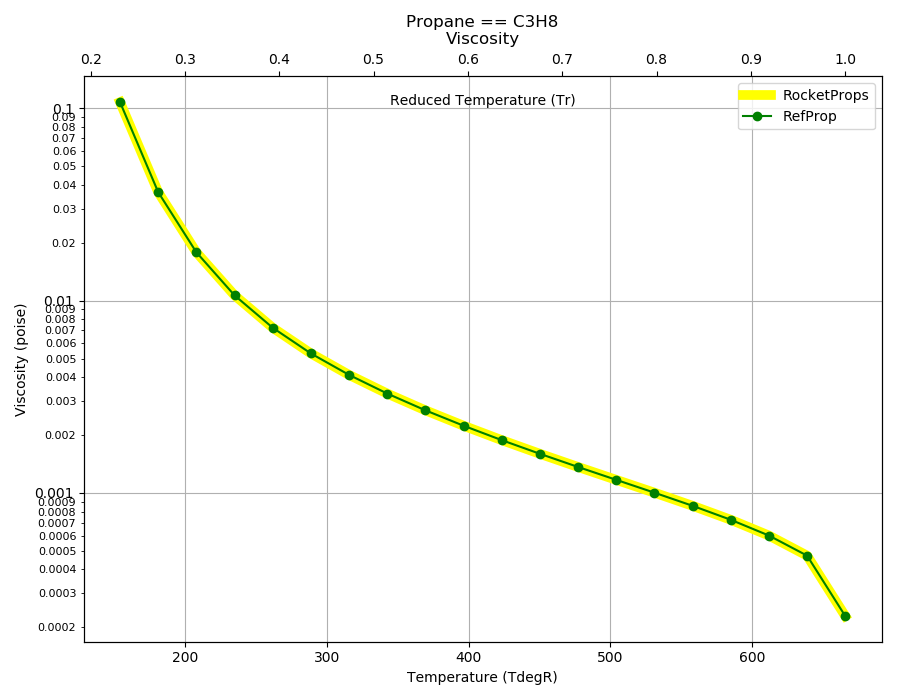

Viscosity¶
Click Image to View Fill Size

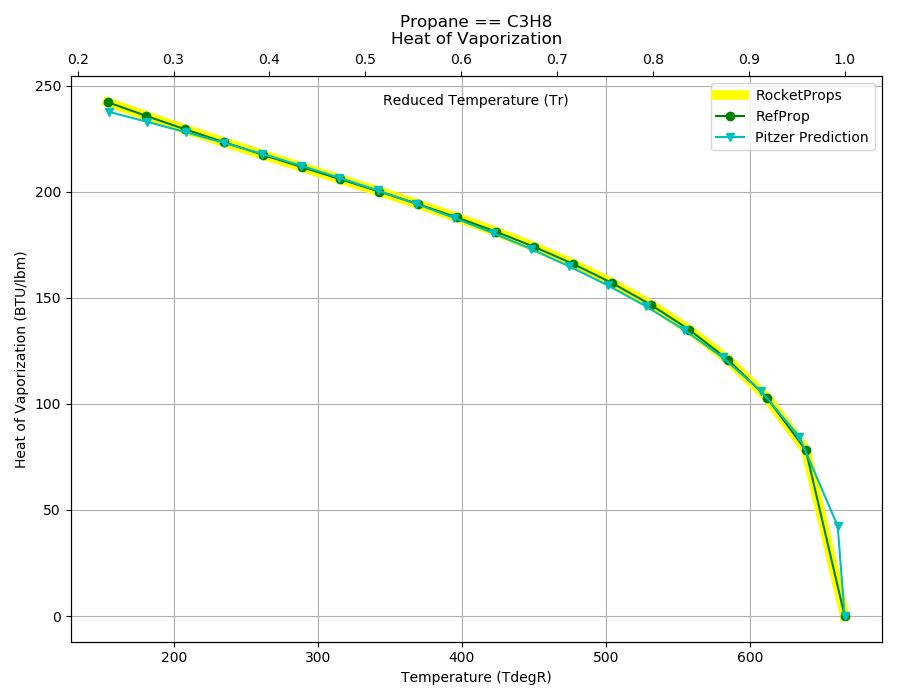

Heat of Vaporization¶
Click Image to View Fill Size

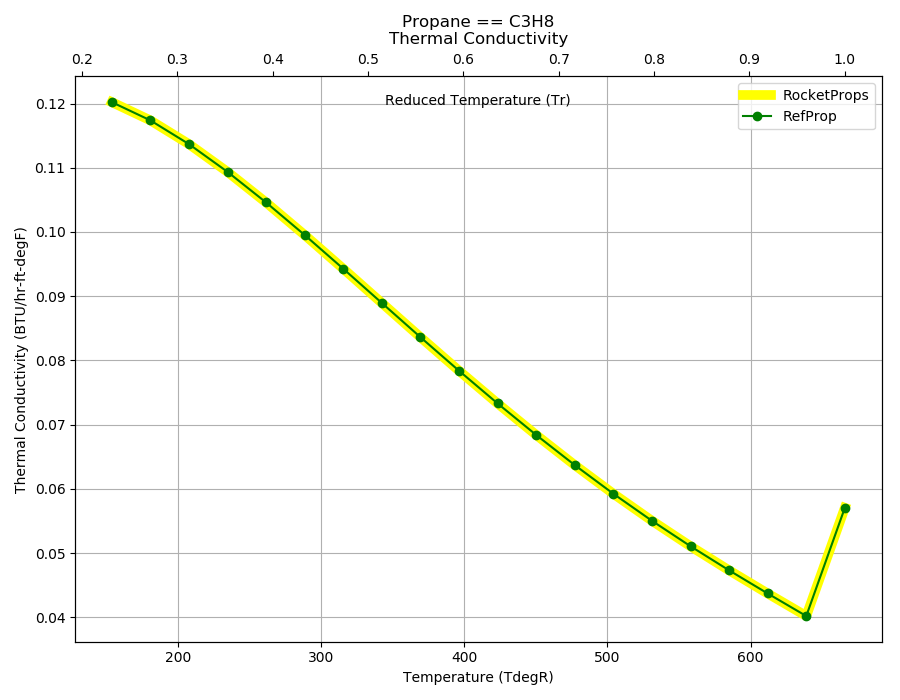

Thermal Conductivity¶
Click Image to View Fill Size

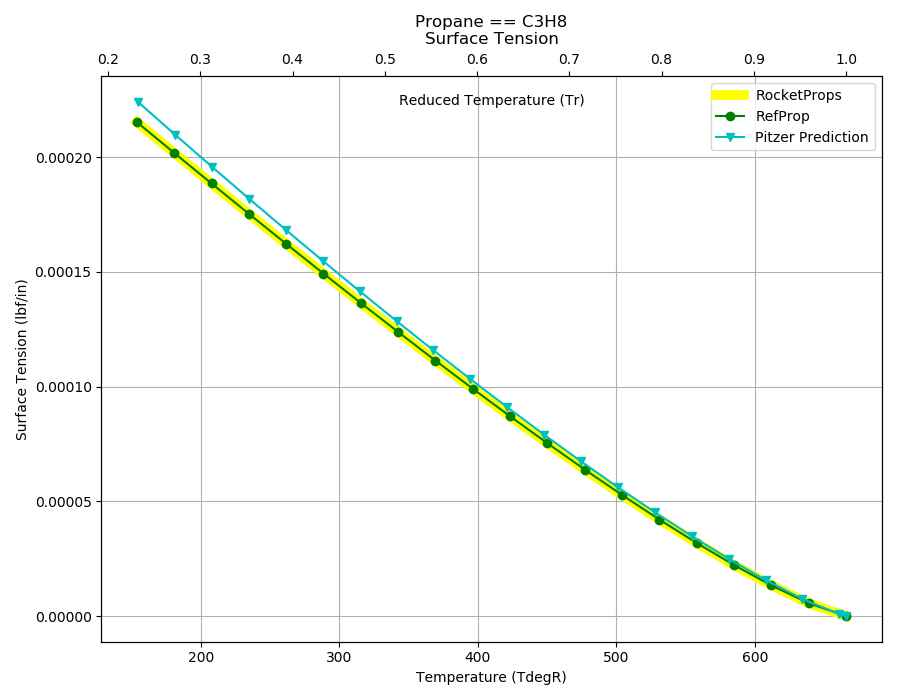

Surface Tension¶
Click Image to View Fill Size
